- Size: 1
- Place of Origin: Xiamen/Amoy
- Brand Name: HiTech
- Model Number: AUM1010
- Weight: 50.000 kg

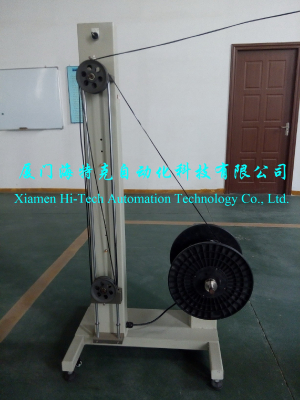

Auto Unwinding Machine-Bobbin (10kg)
Machine Characteristic:
AUM1010-This machine is used in unwinding trimmer line from big bobbin which can control the unwinding speed automatically by tension control. It can reduce the labor cost and improve the productivity.
1.Drive by speed adjustable motor.
2. Automatic tension control.
3. Automatic operational control.
Machine Configuration:
1. Unwinding device.
2. Tension controller.
3. Framework module.
4. Electrical control system.
Principle of Machine Running:
1. The unwinding device drives by speed adjustable motor which can release the yarn automatically.
2. The machine releases the yarn constantly by control the gravity of yarn wheel.
3. The frame is made of proximate matter and sheet metal parts with baking finish. Equip mobile casters and adjustable support.
Provided Technical Drawing:
1. Operation Manual.
2. Machine assembly drawing.
3. Pneumatic and control drawing.
4. Electrical and control drawing.
5. Spare parts list.
Machine Basic Parameter:
Spindle diameter: | 20mm (customizable) | Length of machine: | 650 mm | |
Inner dia. of Bobbin: | 25-45mm (customizable) | Width of machine: | 850 mm | |
Out dia. of bobbin: | ≤ 400 mm | Height of machine: | 1550 mm | |
Width of bobbin: | ≤ 350 mm | Weight of machine: | Approx 30 kg | |
Weight of bobbin: | ≤ 10 kg | Power supply: | 1 Phase AC 220V 50Hz 200w | |
Speed of unwinding: | ≤ 4.5 Rounds/second |
