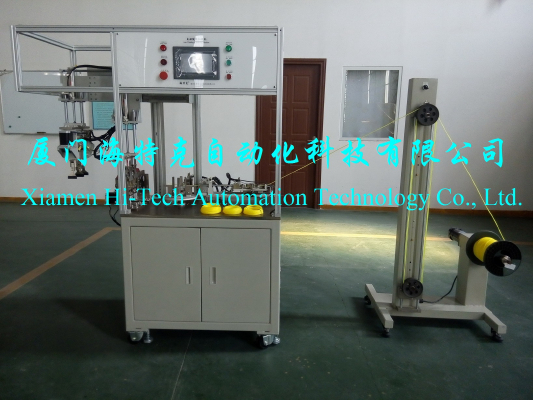

Auto Coiling & Enlacing Machine

Machine Characteristic

ACE0001-Auto coiling and enlacing machine is mainly applied to cut fixed length, wind and enlace of plastic filament, like grass trimming line and nylon monofilament. The machine can automatically cut, wind, enlace plastic filament and discharge products through parameter setting and PLC system, which is low manual cost and high production capacity. One person is needed to operate the machine and the production can be achieved by supplying the electricity and compressed air.

1、   Human machine interface of touch screen; central control; convenient operation; parameter setting; visual display.

2、   According to the setting parameter, the machine can automatically match the operation and count the output under the PLC system.

3、   Photoelectric detection system can automatically detect the lacking, spilling and none wire conditions and alarm and stop the production.

4、   Complete alarming and safety protecting function; double protection of electricity and machinery which is safe and reliable.

Machine Configuration

1、   Feeding module.

2、   Cutting module.

3、   Coiling module.

4、   Enlacing module.

5、   Transposing module.

6、   Frame module.

7、   Program and electrical control system.

Principle of Machine Running

1、   Feeding module feeds wire through precision wheels that driven by stepping motor.

2、   Cutting module cuts wire through alloy cutter that guided by linear guideway and driven by cylinder.

3、   Coiling module driven by stepping motor and match feeding, winding and traversing motion.

4、   Enlacing module driven by stepping motor and enlaces product in double station.

Provided Technical Drawing

1、   Operation manual.

2、   Machine assembly drawing.

3、   Pneumatic and control drawing.

4、   Electrical and control drawing.

5、   Spare parts and wearing parts list.

Machine Basic Parameter
